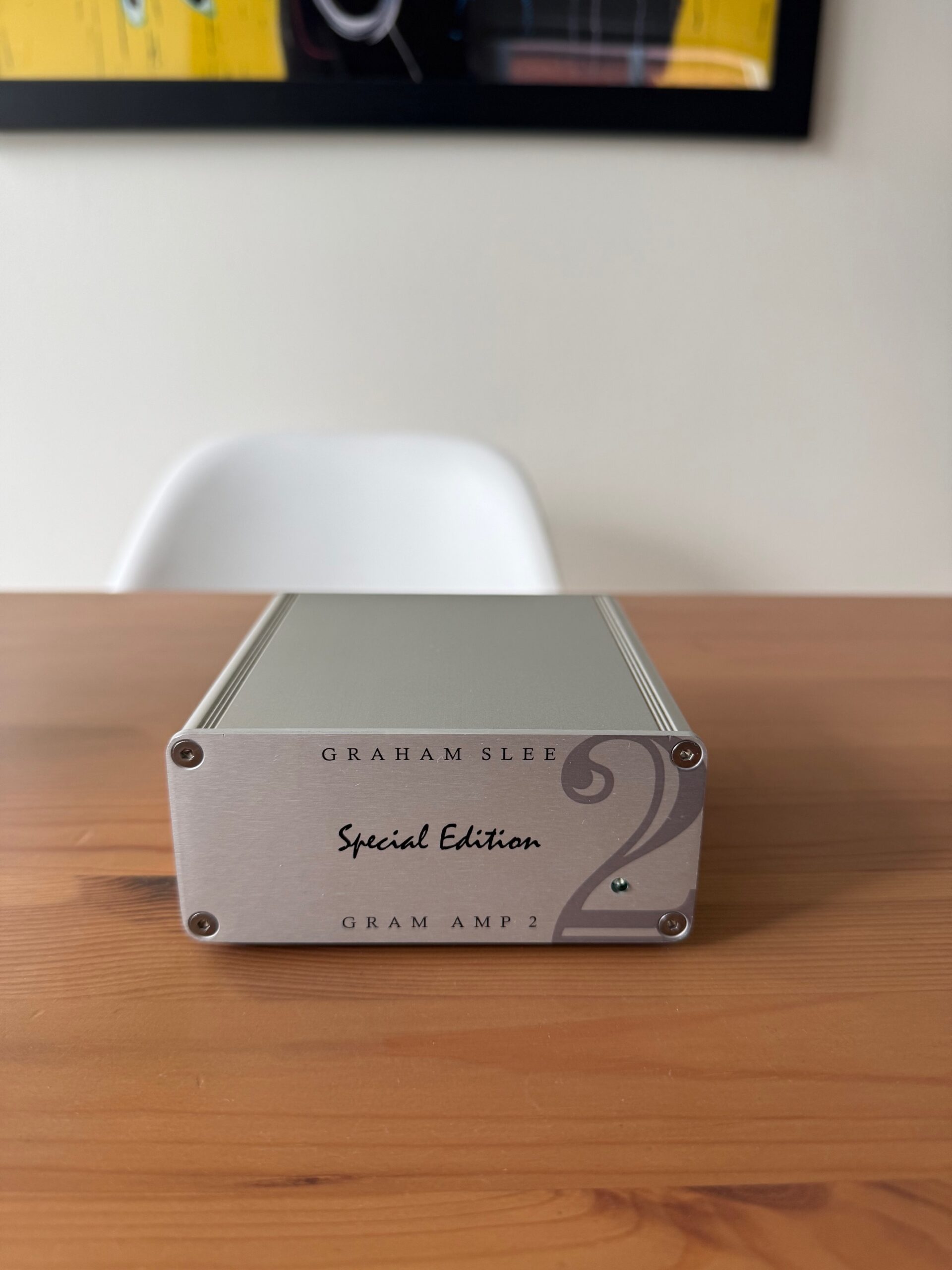

Graham Slee Amp 2 Special Edition

Préampli phono Graham Amp 2 SE en parfait état, comme neuf. Vient avec son adaptateur.

Specs:

Input range 2mV – 10mV rms
Output range (for above inputs) 224mV to 1120mV rms
Gain 41dB (Av 112) ref 1kHz
Phase margin 90 degrees
Maximum input level 41mV (ref: 1 kHz)
Input impedance resistive 47k Ohms
Input impedance capacitive 100pF
Output noise (CCIR Q-Pk 22Hz-22 kHz) -74dB
Equivalent Input Noise (EIN) -115dB
Reproduction characteristic RIAA within 0.5dB total deviation 20Hz-20kHz
Total Harmonic Distortion plus noise measured at 80Hz, 1kHz, 5.6 kHz and 16 kHz < 0.05% (typically < 0.015% at 1 kHz)
Channel balance 0.1dB
Channel separation 64dB
Size (approx.) 107 x 117 x 50mm
